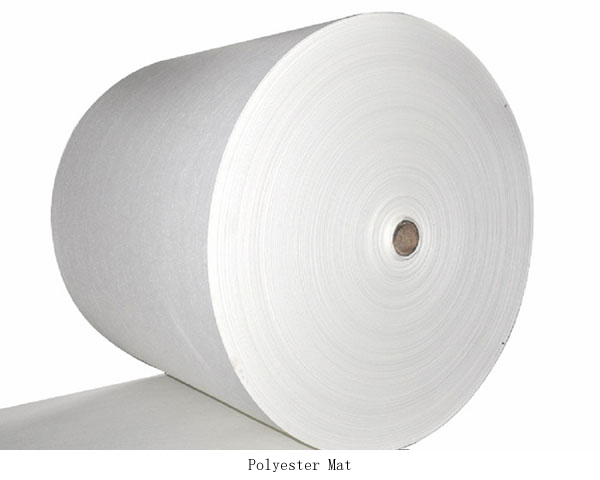

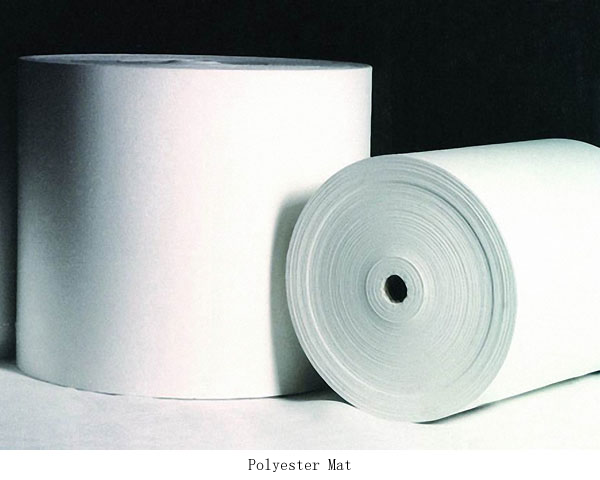

Polyester Mat

GENERAL INFORMATION

Polyester mat is a nonwoven material, manufactured with high grade virgin PET chips or polyester staple fiber. Polyester mat has excellent tensile & tearing strength, extensibility & thermal stability, as well as low shrinkage performance. After saturation with bitumen, the roofing membrane finished product is extremely elastic and has high resistance to aging & corrosion.

Based on raw material & production process difference, we have mainly two types of polyester mat: Long Fiber Polyester Mat (Virgin PET Chips as raw material, produced with spunbond technology, needle punched for mechanical integrity and chemically bonded to increase stiffness) and Staple Fiber Polyester Mat (Polyester Staple Fiber as raw material, produced with dry laid technology, needle punched for mechanical integrity and chemically bonded to increase stiffness).



APPLICATION

Polyester mat is an idea carrier material for bituminous waterproofing membrane. The membrane produced with polyester mat is widely used in various types of construction waterproofing & corrosion resistance circumstances, such as roof, bridge, wall, tunnel, underground, water pool, basement, etc.

TECHNICAL SPECIFICATION (LONG FIBER POLYESTER MAT

Area Weight	Thickness	Tensile Strength		Elongation		Shrinkage
		MD	CMD	MD	CMD	MD	CMD
g/m2	mm	N/5cm N/5cm		% %		% %
120	0.75	380	260	23	25	≤2.0	≤2.0
140	0.85	420	300	25	26	≤2.0	≤2.0
150	0.95	460	330	25	28	≤2.0	≤2.0
160	1.05	480	360	25	30	≤2.0	≤1.5
170	1.10	520	400	25	30	≤2.0	≤1.5
180	1.15	550	420	28	30	≤1.5	≤1.0
200	1.25	580	480	30	35	≤1.5	≤1.0
250	1.55	780	650	35	40	≤1.2	≤1.0
